q-switch nd yag laser 1064/532nm touch screen for laser scar removal machine med-810a
Work theory:
Yttrium-Aluminum-garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. Selective thermolysis can be applied towards the removal of tattoos. The energy delivered by a number of different lasers is targeted towards the carbon particles or dyes that are found in skin tattoos, allowing selective destruction of the foreign pigment while minimizing damage to the surrounding skin.
1, How Q-Switch nd yag laser works(pigment removal/tattoo removal/whitening)
The technology of Qswitched and ktp crystal laser are adopted in the equipment which can release laser energy instantaneously from huge impulse. it can break pigment tissue into pieces so we can achieve the purpose of pigment and
tattoo removal, because it’s wavelength limits it not so deep into skin, so it is not injuring the skin and no scar.
2, Q-Switch ND Yag Laser Main Features (pigment removal/tattoo removal/whitening)
1) 1064nm can get rid of eye line, eyebrow line, lip line, tattoo, speckle (black, blue, etc.)
2) 532nm can get rid of eyebrow line, eye line, lip line, tattoo, speckle, titian nevus (red, brown, etc.) and capillary vessel dilatation.
3) Face Whitening ,pigmentation removal ,lifting ,smoothing
3, Q-switch ND YAG LASER Technical Parameters (pigment removal/tattoo removal/whitening)
| Wavelength | 1064nm & 532nm |
| Energy | 1-1600mJ |
| Laser Type | Q-switched KTP Nd:YAG |
| Spot Size | 2-8mm |
| Repetition Rate | 1-6Hz |
| Pulse Width | <10ns |
| YAG Bar Size | 7 + 8 |
| Power | 500W |
| Stand-by Working | Continuously for 18 hours |
| Cooling | Self-contained, closed water cycle |

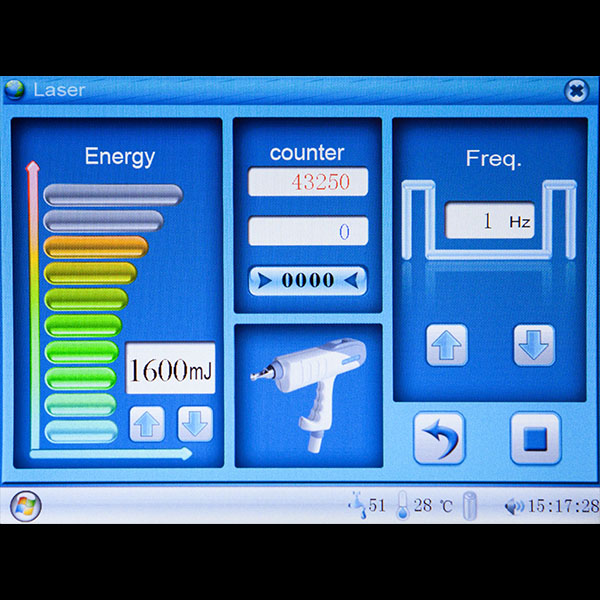

| Display | 8.4” True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 25kgs |
| Dimensions (WxDxH) | 45*40*57cm |
4, Q-Switch nd yag laser Advantages (pigment removal/tattoo removal/whitening)
1) Easy operating
2) High energy up to 2000Mj
3) The service for this machine is lifetime
4) International standard with Medical CE and ISO
5) All producing process is under strict inspection
6) Long working time without stop
12 month for host machine, Lifelong Maintenance Service
2. Once the machine have any malfunction during the operation, how to do?
Please rest assure if you met such problem, because KES has a professional after-sale service team which can reach you immediately and solve the machine’s problem within 1-3 days.
For details, please contact with us freely
3. If the machines broken during the shipment, how to do?
Generally there will be transportation insurance in the shipment, once there is any damage during the transportation, KES will help you to solve the claims with the insurance companies to collect your money back in time.
